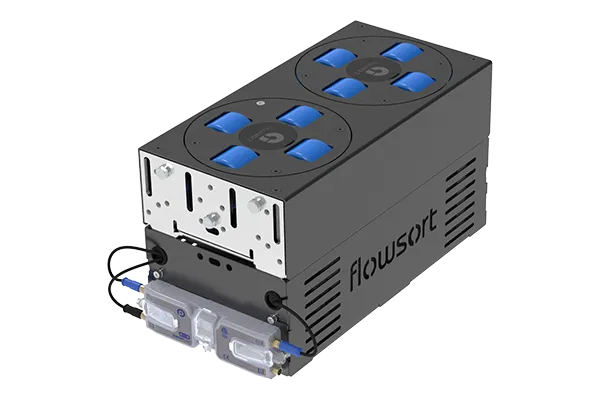

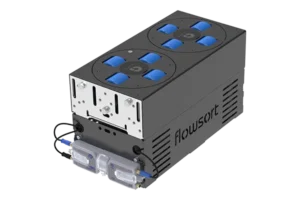

The Single Line Diverter (SLD) is built for integration into a wide range of conveyor systems. The Speed Flow Compact version is a more compact and faster alternative to the Eco Flow version. Thanks to its reduced overall height, it offers greater flexibility for multi-level sorting applications and seamless integration into multi-level conveyor systems where space optimization and high throughput are essential. Its modular design allows flexible configuration to match specific layout and throughput requirements. Powered by high-efficiency 24V or 48V pulse gear motors, the SLD ensures reliable, energy-optimized operation. It supports industrial communication protocols such as EtherCAT and Profinet, enabling direct integration into PLC-controlled automation environments. Each diverting row includes a homing sensor for precise position referencing and an independent control card for decentralized control. This enables accurate handling and consistent system performance. The plug-and-play concept, combined with standardized mechanical and electrical interfaces, reduces installation and commissioning time, making integration into existing systems fast and straightforward.
 |
 |
|
|---|---|---|
| Wheel diameter | ø 180 mm | ø 180 mm |
| Module length | 200 mm | 400 mm |
| Module height | 227 mm | 227 mm |
| Number of rows | 1 | 2 |
| Standard width | 400-600-800-1000 mm | 400-600-800-1000 mm |
| Width adjustable | Yes max 60 mm | Yes max 60 mm |
| PU wheel diameter | ø58 mm | ø58 mm |
| Hardness wheel | 80° shore A | 80° shore A |
| Diverting angle | -90° to +90° | -90° to +90° |
|
|
|
|
|---|---|---|
| Min product dimensions | 150 x 150 mm | 150 x 150 mm |
| Max product dimensions | on request | on request |
| Max sorting capacity | 7800 pph | 7800 pph |
| Min product weight | 50 gr. | 50 gr. |
| Max product weight | 35 Kg | 35 Kg |
|
|
|
|
|---|---|---|
| Motor for disc rotation | 24/48 Volt High-speed servo drive | 24 or 48 Volt High-speed servo drive |
| Max disc rotation speed | -90° to +90° in 0,3 seconds | -90° to +90° in 0,3 seconds |
| Motor for PU wheels | 24/48 Volt High-speed servo drive | 24 or 48 Volt High-speed servo drive |
| Maximum wheel speed | 2,0 m/s | 2,0 m/s |
| Sensor | Homeing position sensors per row | Homeing position sensors per row |
| Control hardware | Advanced control card per row, industrial Ethernet, EtherCAT, PROFINET compatible | Advanced control card per row, industrial Ethernet, EtherCAT, PROFINET compatible |
3D CAD Models
PDF Documentation
Installation and operation manuals in 6 languages
