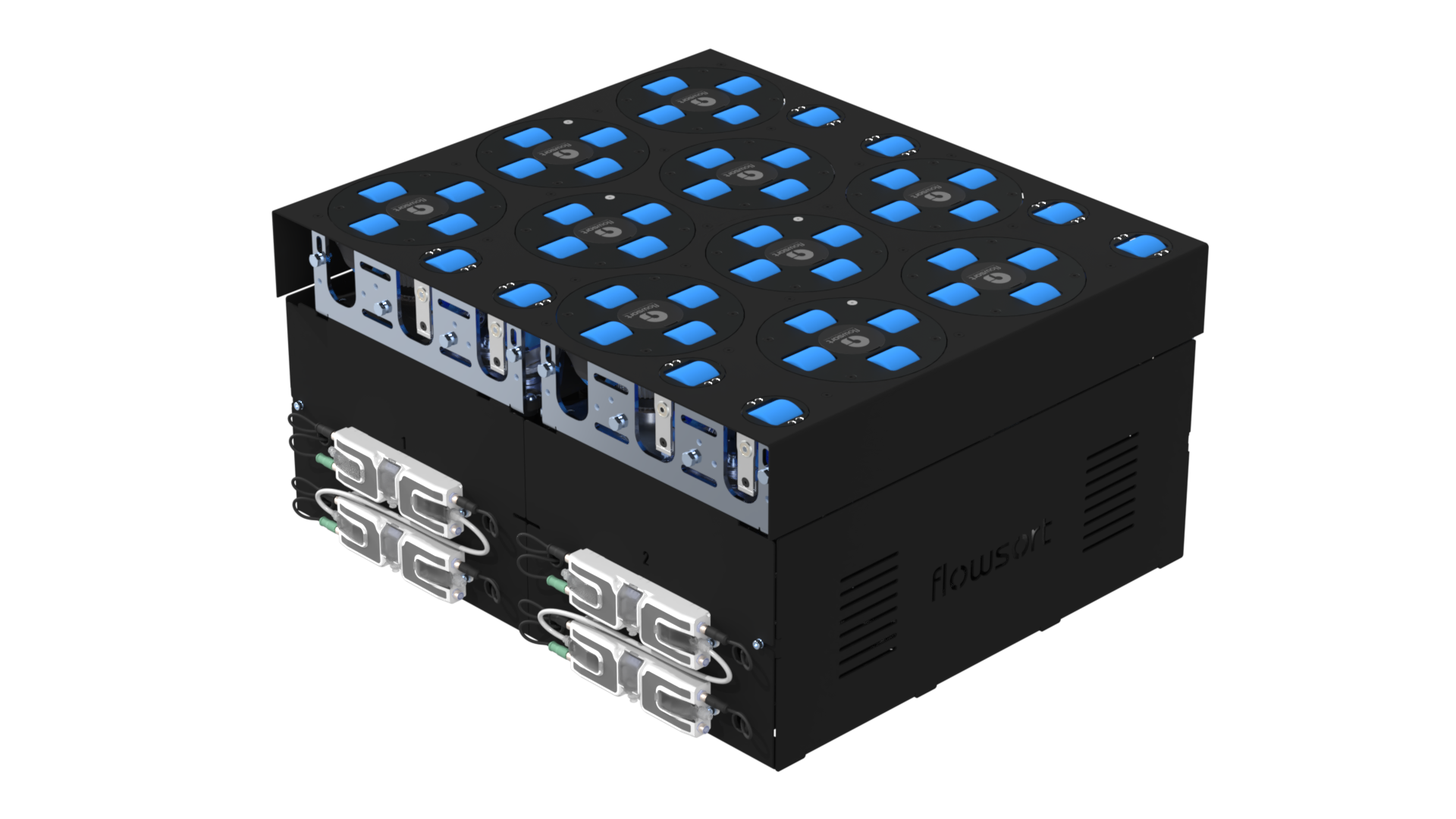

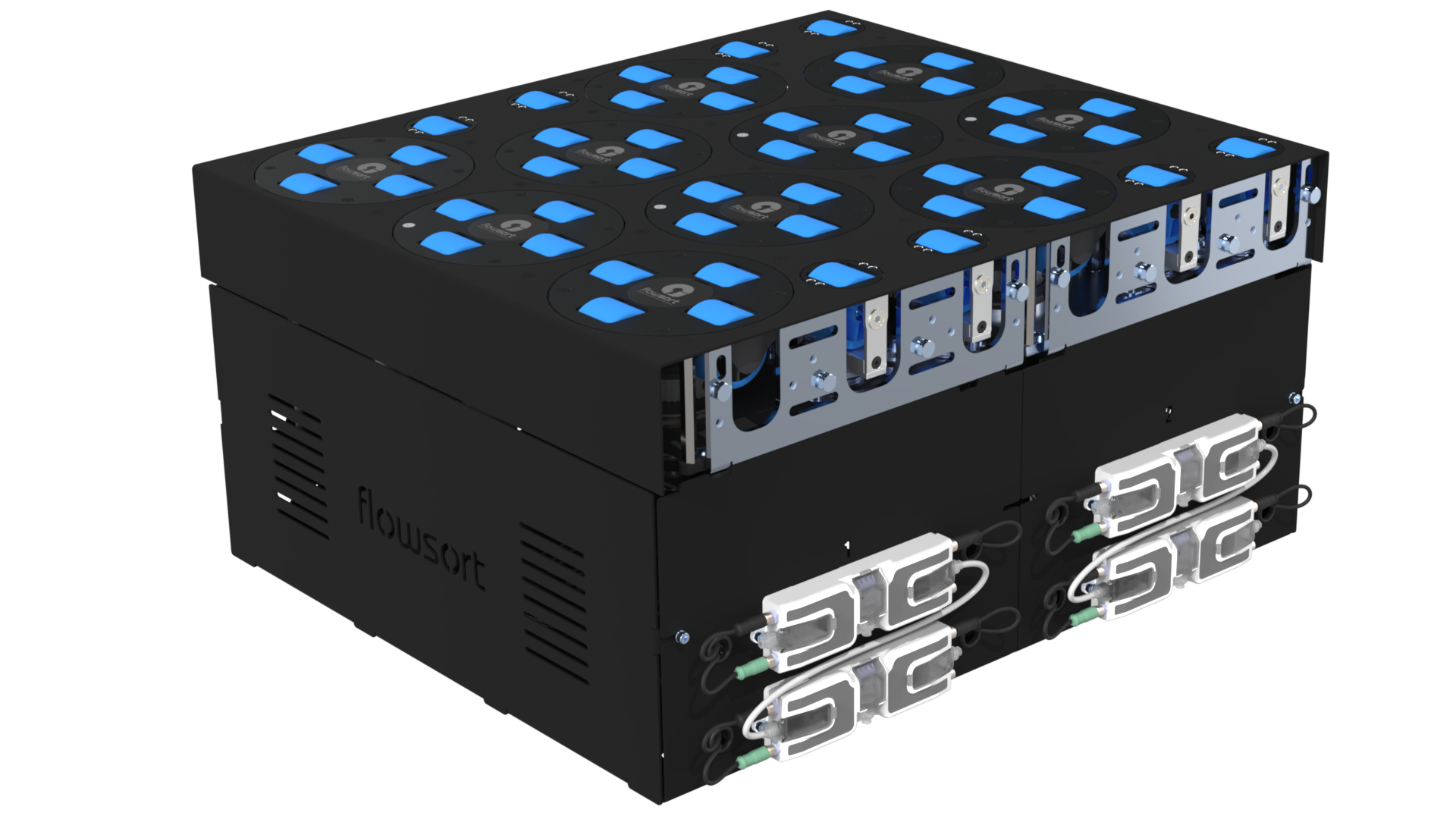

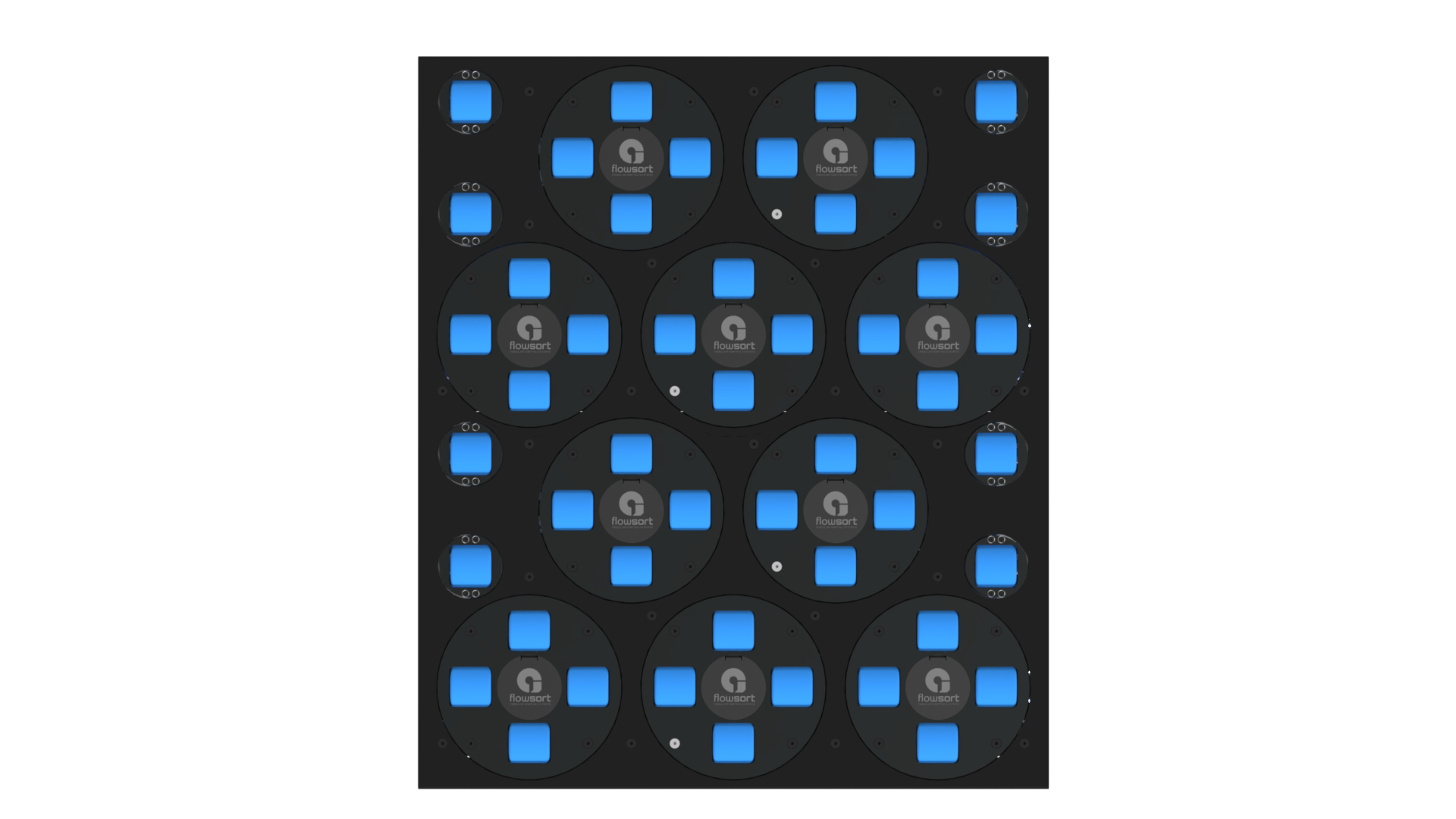

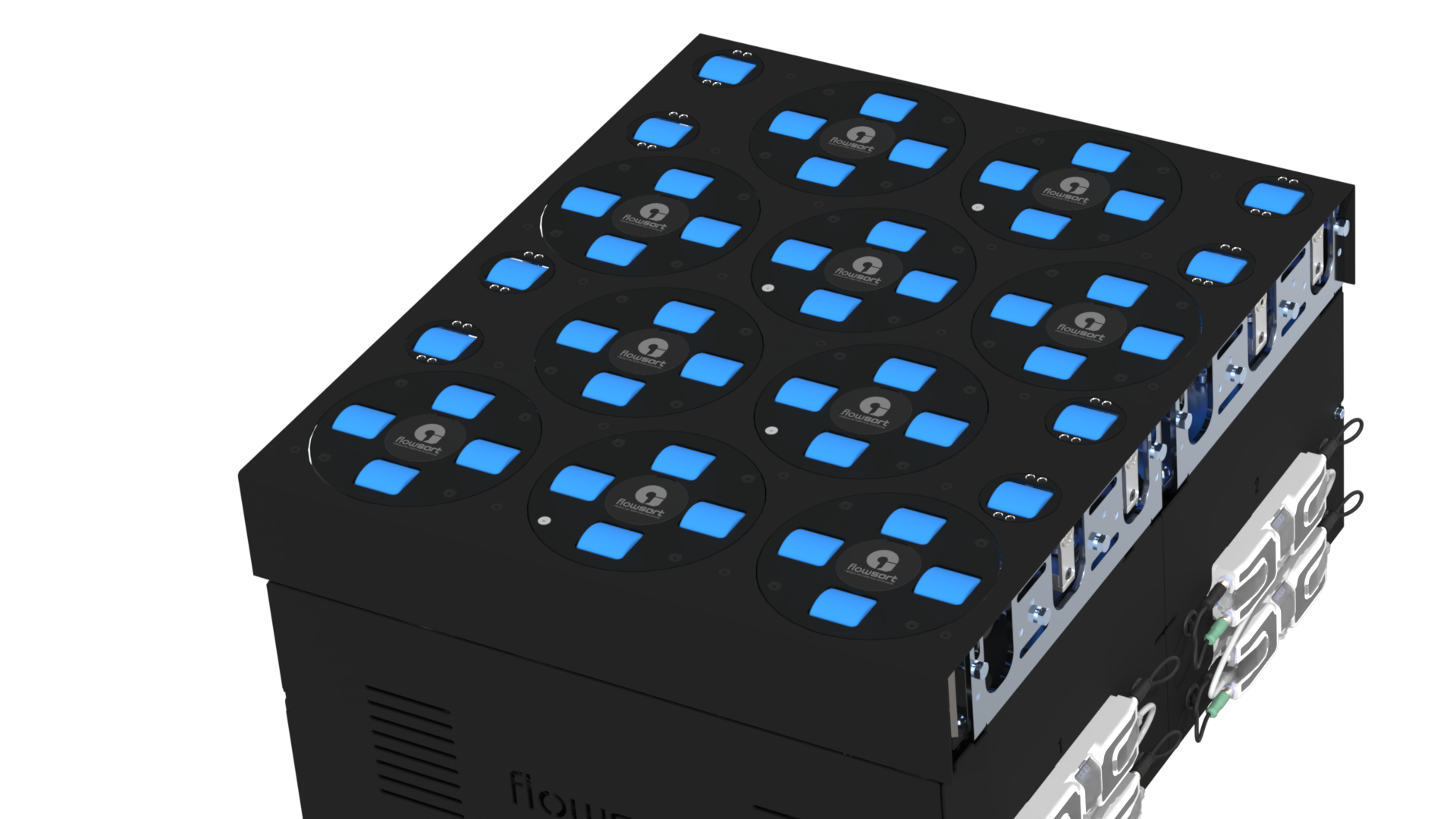

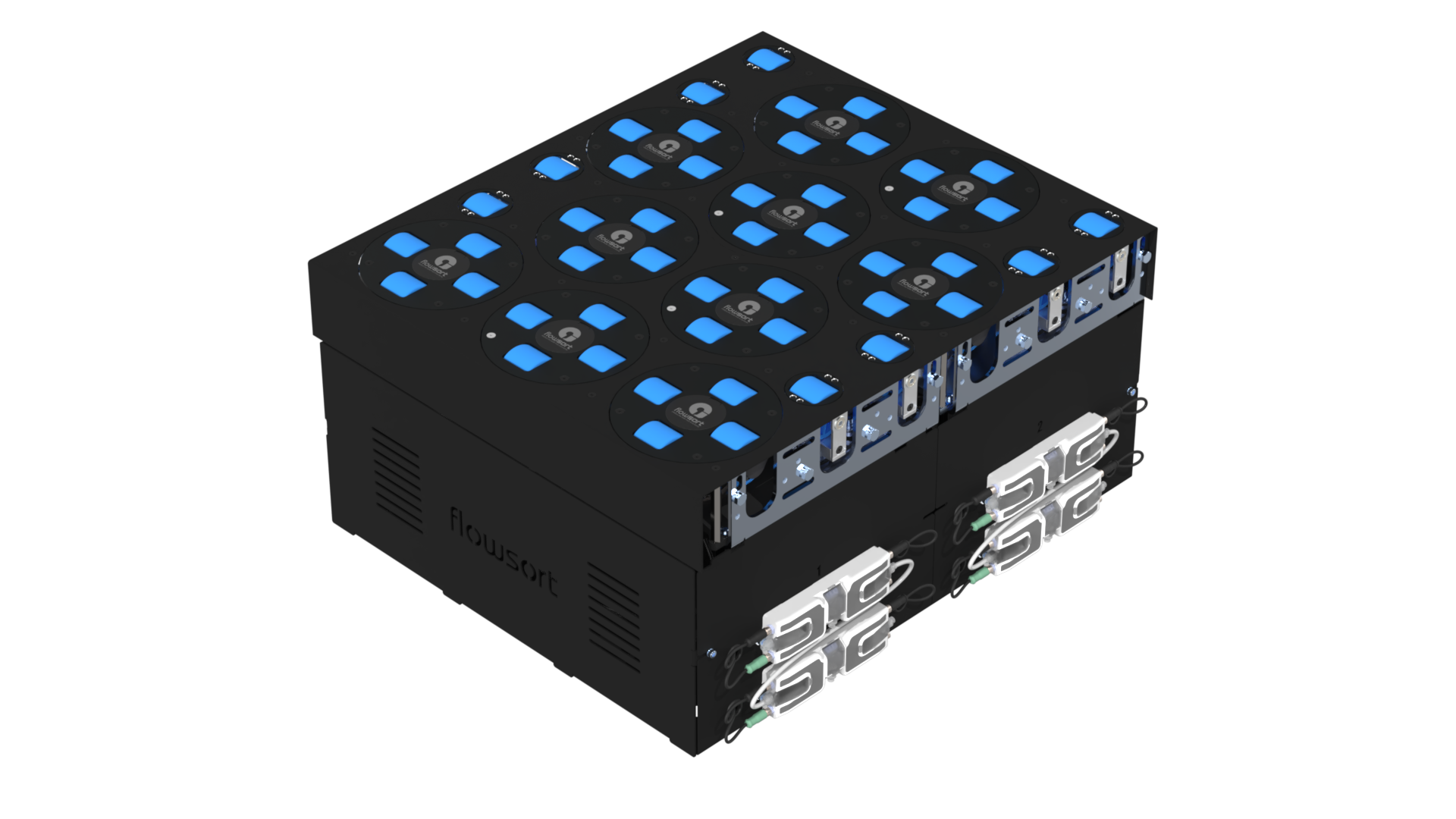

The Multi Line Diverter (MLD) sorter is a high-speed diverter designed for integration into virtually any conveyor system. Its offset wheel configuration enables reliable handling of small items down to 80 × 80 mm. The modular, plug-and-play design allows quick installation and flexible expansion with additional two-row wheel sections. With multi-directional sorting capabilities, the system can route products to multiple destinations from a single unit, supporting a wide range of intralogistics applications while optimizing system layout.
 |
|
|---|---|
| Wheel diameter | ø 180 mm |
| Module length | 373,2 mm |
| Module height | 360 mm |
| Number of rows | 2 |
| Standard width | 400-600-800-1000 mm |
| Width adjustable | Non adjustable |
| PU wheel diameter | ø58 mm |
| Hardness wheel | 80° shore |
| Diverting angle | Full 360° rotation |
|
|
|
|---|---|
| Min product dimensions | 80 x 80 mm |
| Max product dimensions | on request |
| Max sorting capacity | 6000 pph |
| Min product weight | 50 gr. |
| Max product weight | 40 Kg |
|
|
|
|---|---|
| Motor for disc rotation | 24 Volt or 48 Volt Advanced stepper drive |
| Max disc rotation speed | Full 360° in 0,50 seconds |
| Motor for PU wheels | 24 or 48 Volt Precision gear drive |
| Maximum wheel speed | 1,5 m/s |
| Sensor | Multiple position sensors per row |
| Control hardware | Advanced control card with multi-destination routing, supports multiple fieldbus protocols |
3D CAD Models
PDF Documentation
Installation and operation manuals in 6 languages
